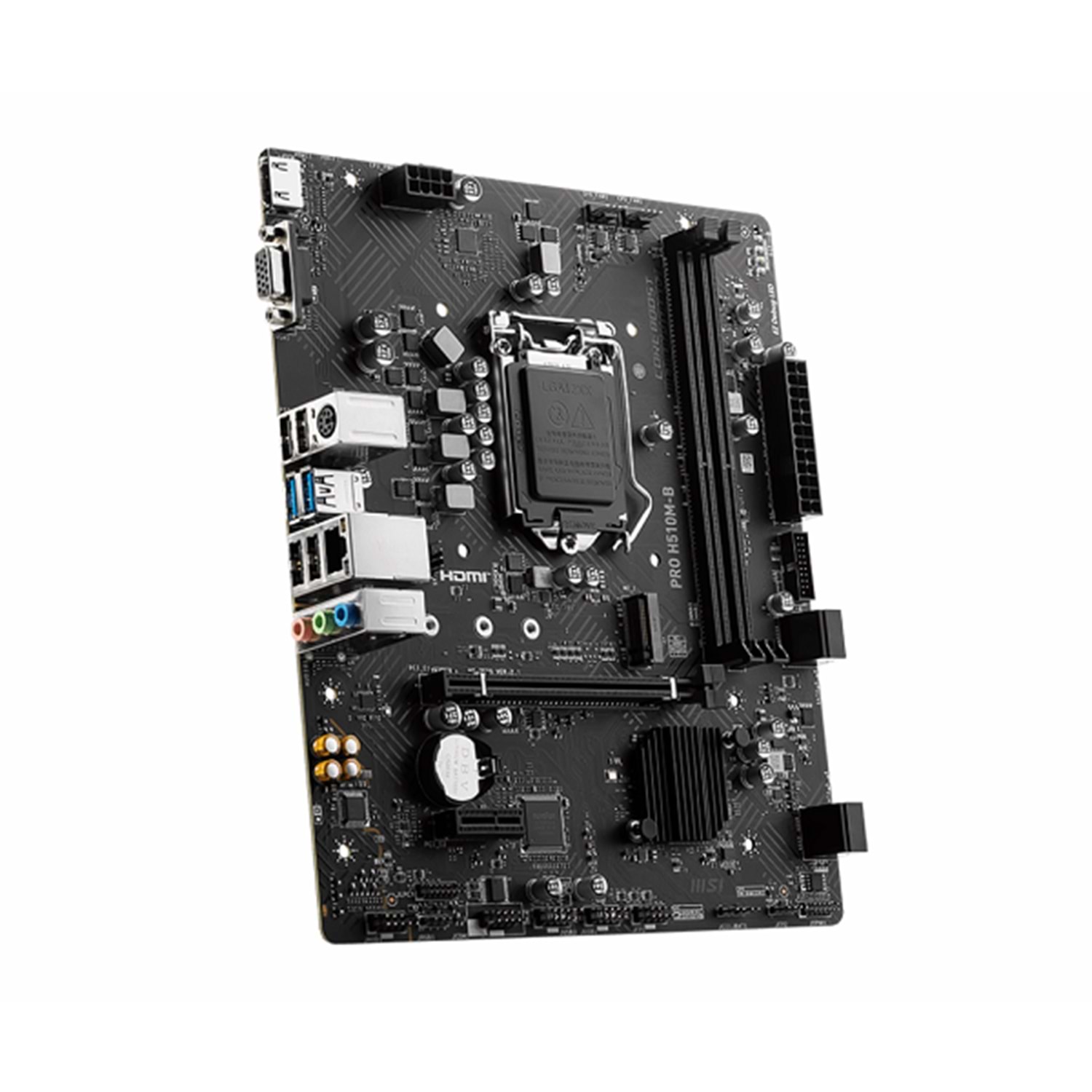

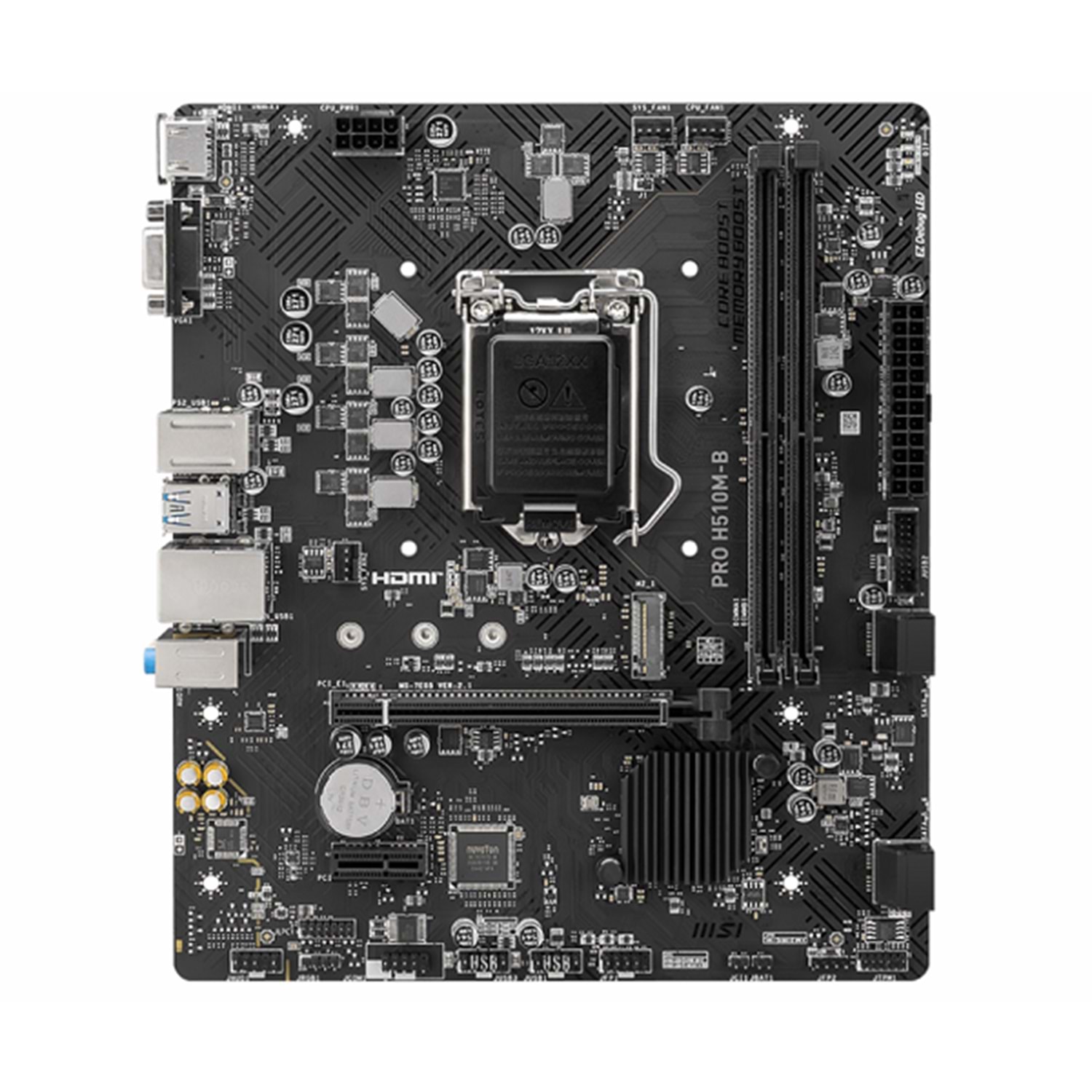

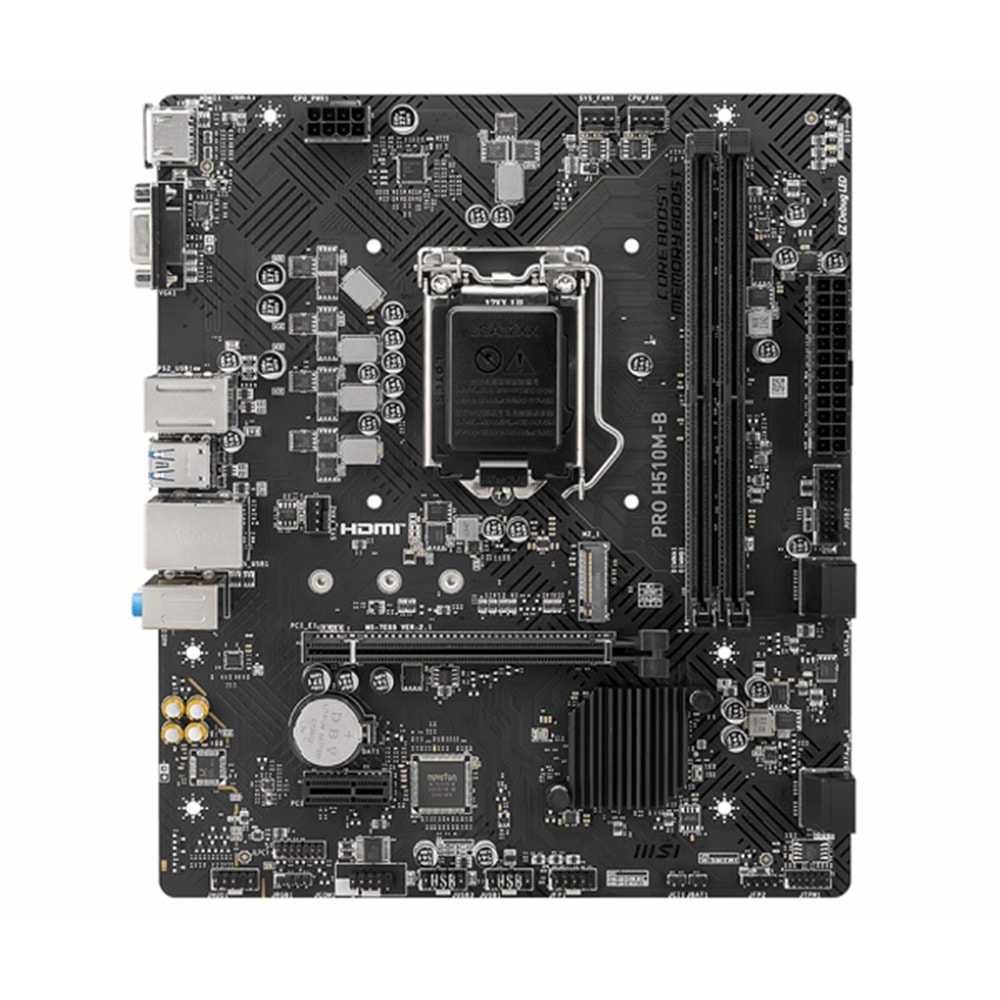

Msi PRO H510M-B H470 DDR4 Vga GLan mATX Hdmi USB3.2 M2 RGB 1200p Anakart

İŞLEMCİ: Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket

YONGA SETİ : INTEL H470

BELLEK:
2x DDR4, Maximum Memory Capacity 64GB
Memory Support 2933/ 2666/ 2400/ 2133 MHz
Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU
Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

DAHİLİ GRAFİK: 1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
1x VGA

GENİŞLEME YUVALARI:
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

SES DESTEĞİ
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN: Realtek® 8111H Gigabit LAN
USB PORTLARI: 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)

DEPOLAMA ARAYÜZÜ: 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G

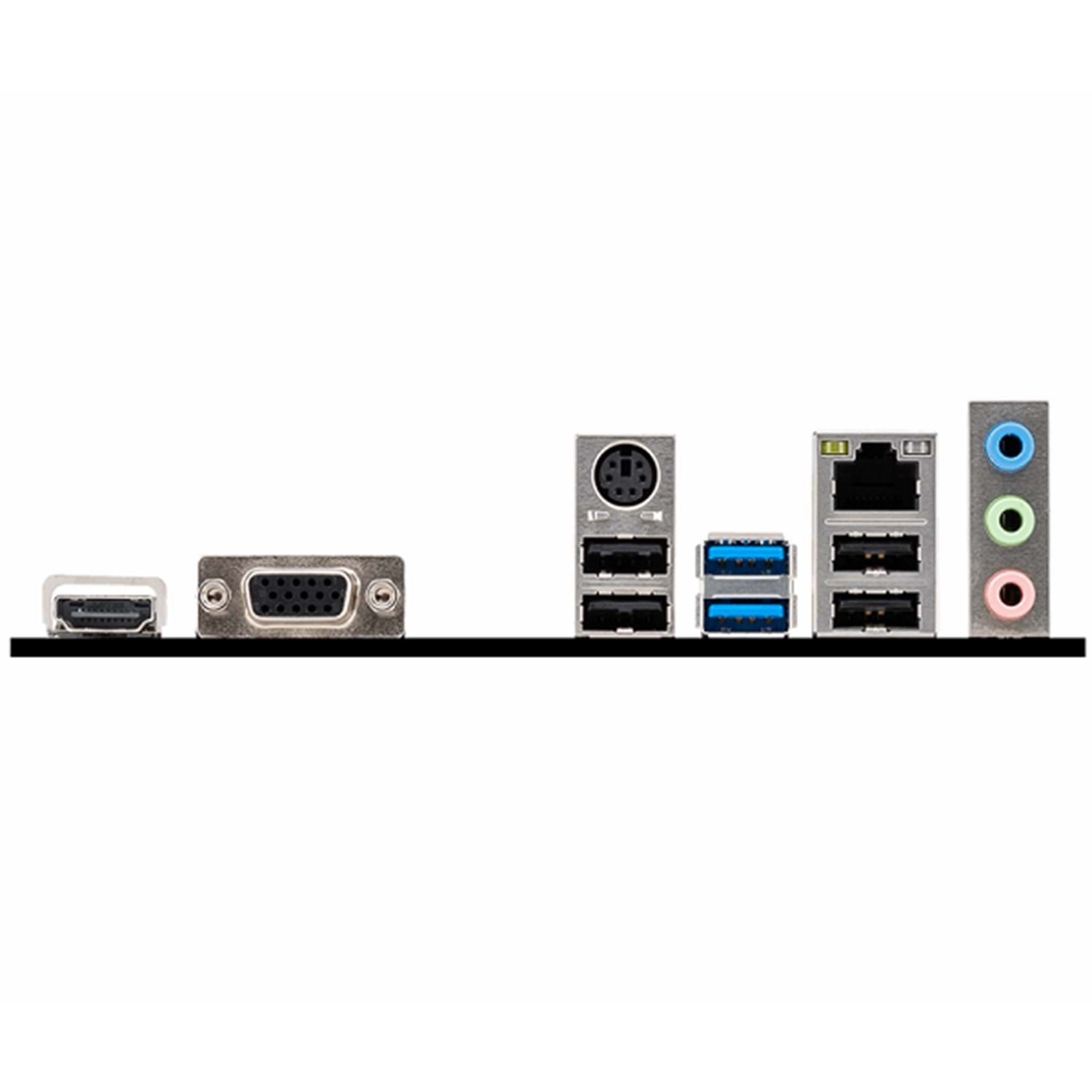

ARKA GİRİŞ/ÇIKIŞ PORTLARI HDMI™ VGA
Keyboard / Mouse: USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio Connectors USB 2.0

DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI:
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports

İŞLETİM SİSTEMİ DESTEĞİ:
Support for Windows® 11 64-bit
Windows® 10 64-bit

FORM FAKTÖRÜ
mATX 202mmx236mm
