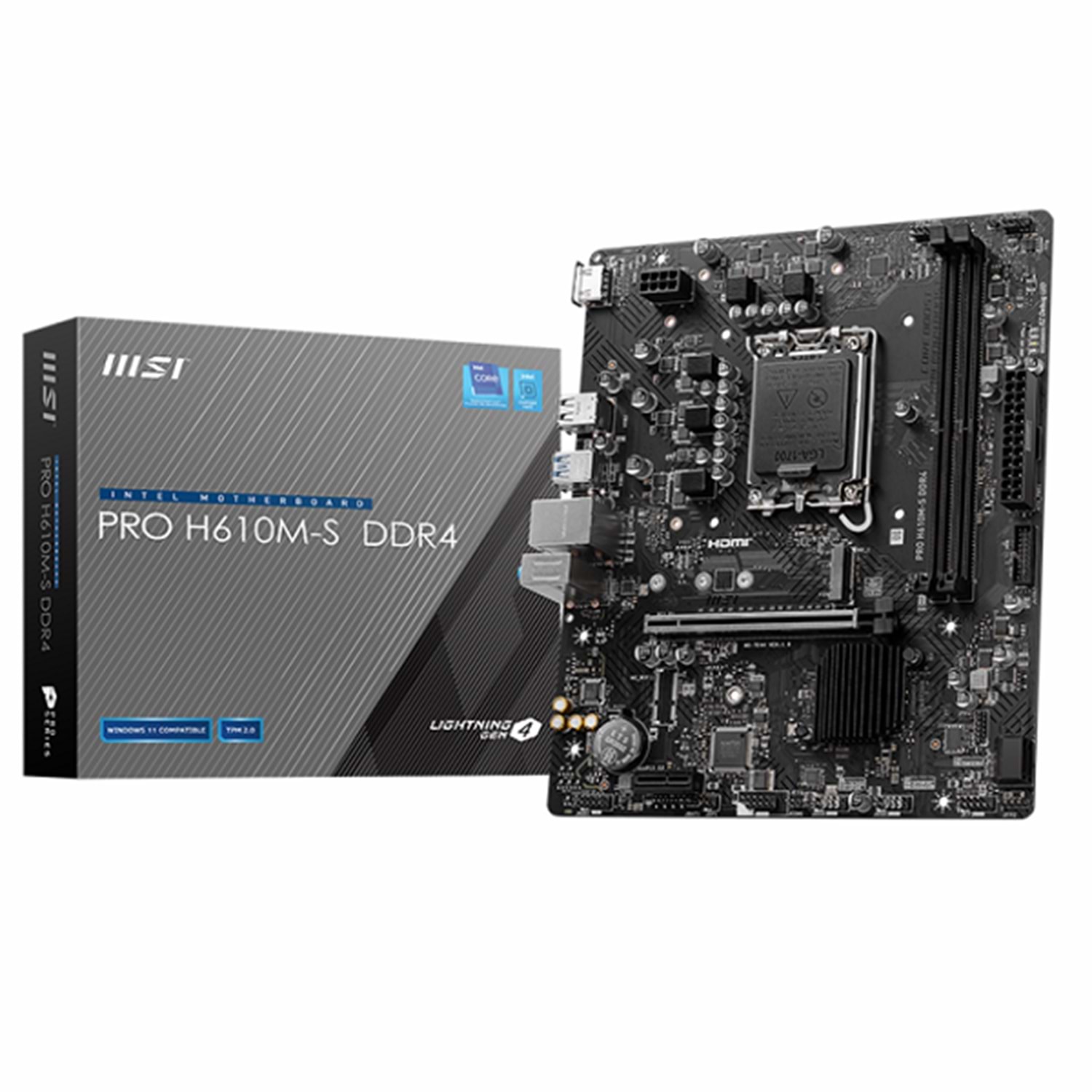

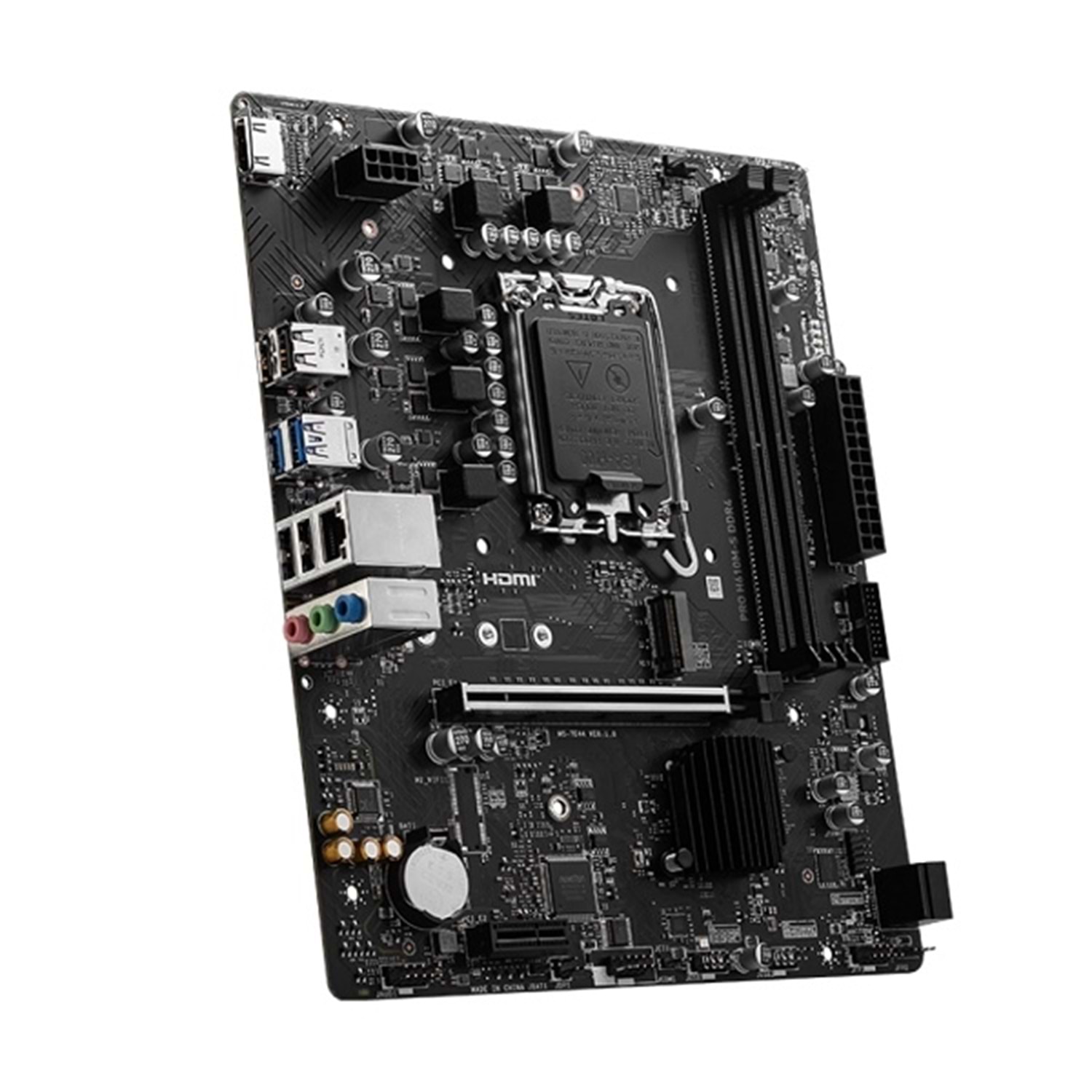

Msi Pro H610M-S H610 DDR4 (Vga Yok) GLan mATX HDMI M2 USB3.2 1700p Anakart

MARKA MSI
GARANTİ SÜRESİ 24
İŞLEMCİ Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
YONGA SETİ H610
BELLEK 2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
DAHİLİ GRAFİK 1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz
GENİŞLEME YUVALARI 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
SES DESTEĞİ Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN Realtek® RTL8111H Gigabit LAN
USB PORTLARI 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
DEPOLAMA ARAYÜZÜ 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
2x SATA 6G

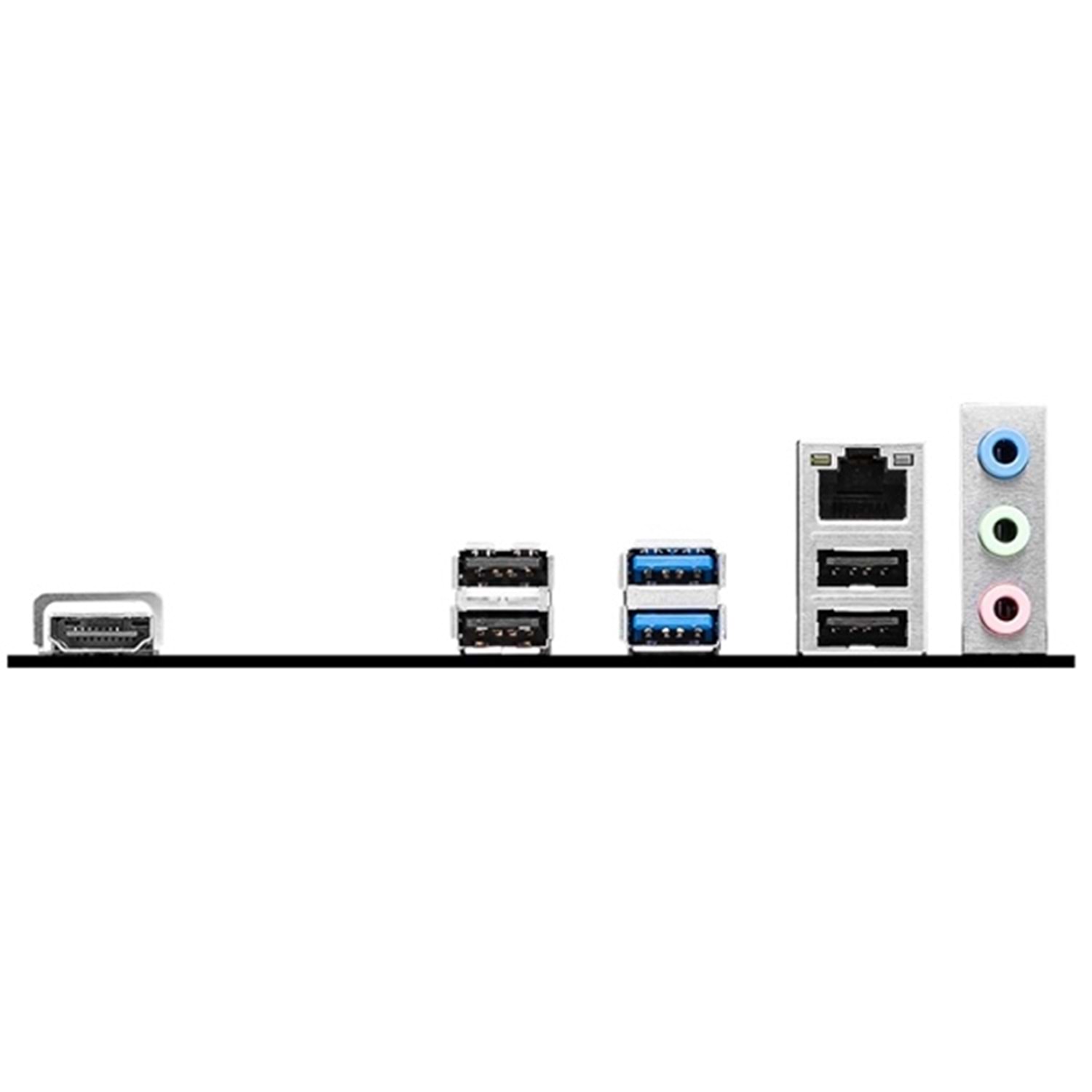

ARKA GİRİŞ/ÇIKIŞ PORTLARI HDMI™
USB 3.2 Gen 1 5Gbps (Type-A)
USB 2.0
LAN port
Audio Connectors
USB 2.0
DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
İŞLETİM SİSTEMİ DESTEĞİ Support for Windows® 11 64-bit, Windows® 10 64-bit
FORM FAKTÖRÜ mATX
200mmx236.16mm
